Product feature

1. Adopt Europe export accessory for key components, the properties may reach the level of products abroad.

2. MP and Argo filter for operational; 3μm, β≥200，NAS5-6 Grade could be achieved for once new oil(NAS10-11) filtration. 5μm, β≥200，NAS6-7 Grade could be achieved for once new oil(NAS10-11) filtration.

3. Water(free water) remove element available, each unit holding water capacity 1300ml;

4. Optional in-line contamination monitor;

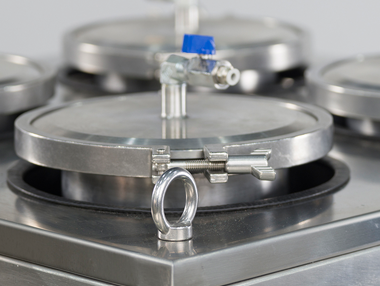

5. Convenient filter replacement with easy detachable top cover design.

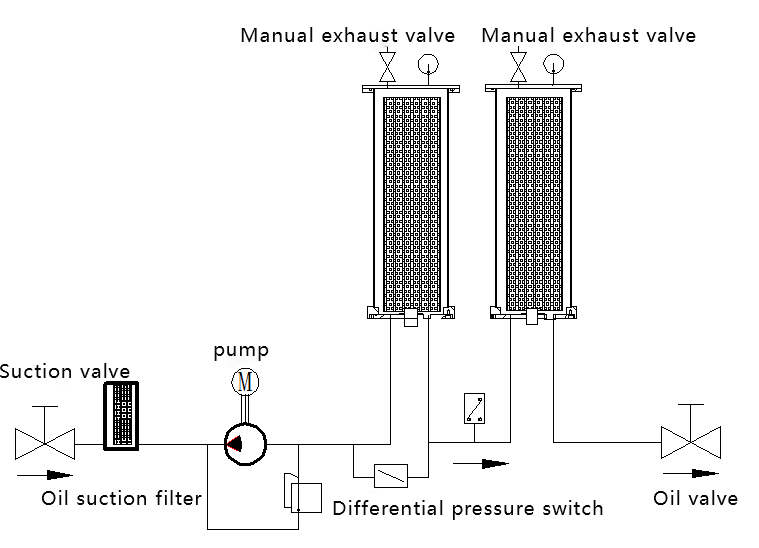

Working principle

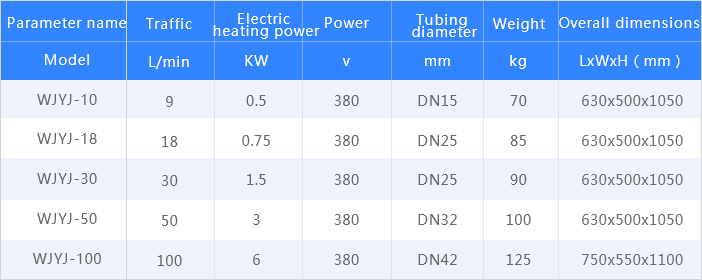

Product parameters

Client Cases

•

  張家港空壓機(jī)WJYJ凈油小車

Optional devices

• WICM- Inline Contamination Monitor
• Various filter elements

1.
   Technical parameters

   ?8 channel contamination measurement & display

   ?Measures and displays the following international standard formats; ISO 4406:1999, NAS 1638, AS 4059E and ISO 11218

   ?Moisture and temperature sensing fluid dependant

   ?Data logging and 4000 test result memory

   ?Manual, automatic and remote control flexibility

   ?Multicolour LED and remote alarm signals available (R Versions)

   ?Robust die cast aluminum construction

   ?LPA View software (included)

   ?Pressure max. 400 bar

   ?Environmental protection IP65/67 versatile

2.
   Technical parameters

   Widely used in hydraulic systems and lubrication systems for engineering machinery, mining machinery, metallurgical machinery, etc.

   Large filtration area, low pressure loss, high dirt-holding capacity and long service life. The compatible fluids are including mineral-based, water-glycol, phosphate-based, and various special hydraulic fluids. Filtering fineness: 1μm-500μm(β=100)

If you are interested in the product, you can contact us directly or leave a message below.
