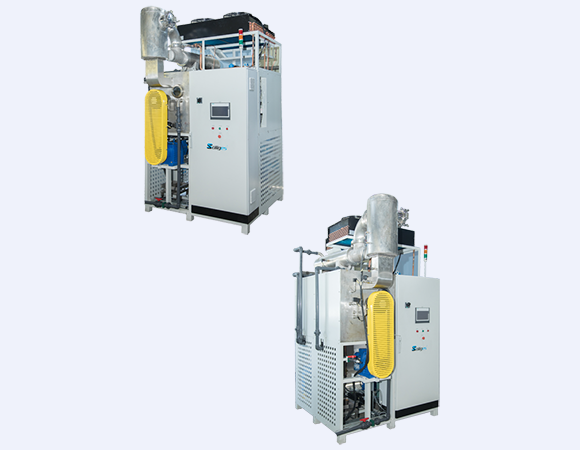

Product feature

1.Jacketed heat exchanger not in contact with the influent

2.Boiling vessels in A-316/316L or special alloys

3.Heat pump loop for low temperature evaporator with compressor, Freon gas R407c or R134a.

4.Automatic product inlet with modulating valves.

5.Antifoam circuit with foam-detector and automatic injection system

6.Internal scraper controlled by gear motor to clean fouling and to improve the concentration degree.

7.Condensation with plate heat exchanger

8.Vacuum circuit with pump.

9.Automatic concentrate discharge with valves or pumps

10.Comprehensive Control System with Siemens PLC and Control Panel

11.Cleaning in place system for the inside of the evaporator, thus guaranteeing its continuous availability.

12.Machine with paneling to minimize the noise and optimize the performance of the machine at thermal level.

13.It is possible to build the machine, the parts in contact with the liquid, with a special material that is resistant to corrosion (SAF 2507 or TITANIUM) (effluent with a high chloride or fluoride, etc., content)

14.Remote control regulator can realize Internet of things, mobile phone visualization and alarm functions.

15.No steam required

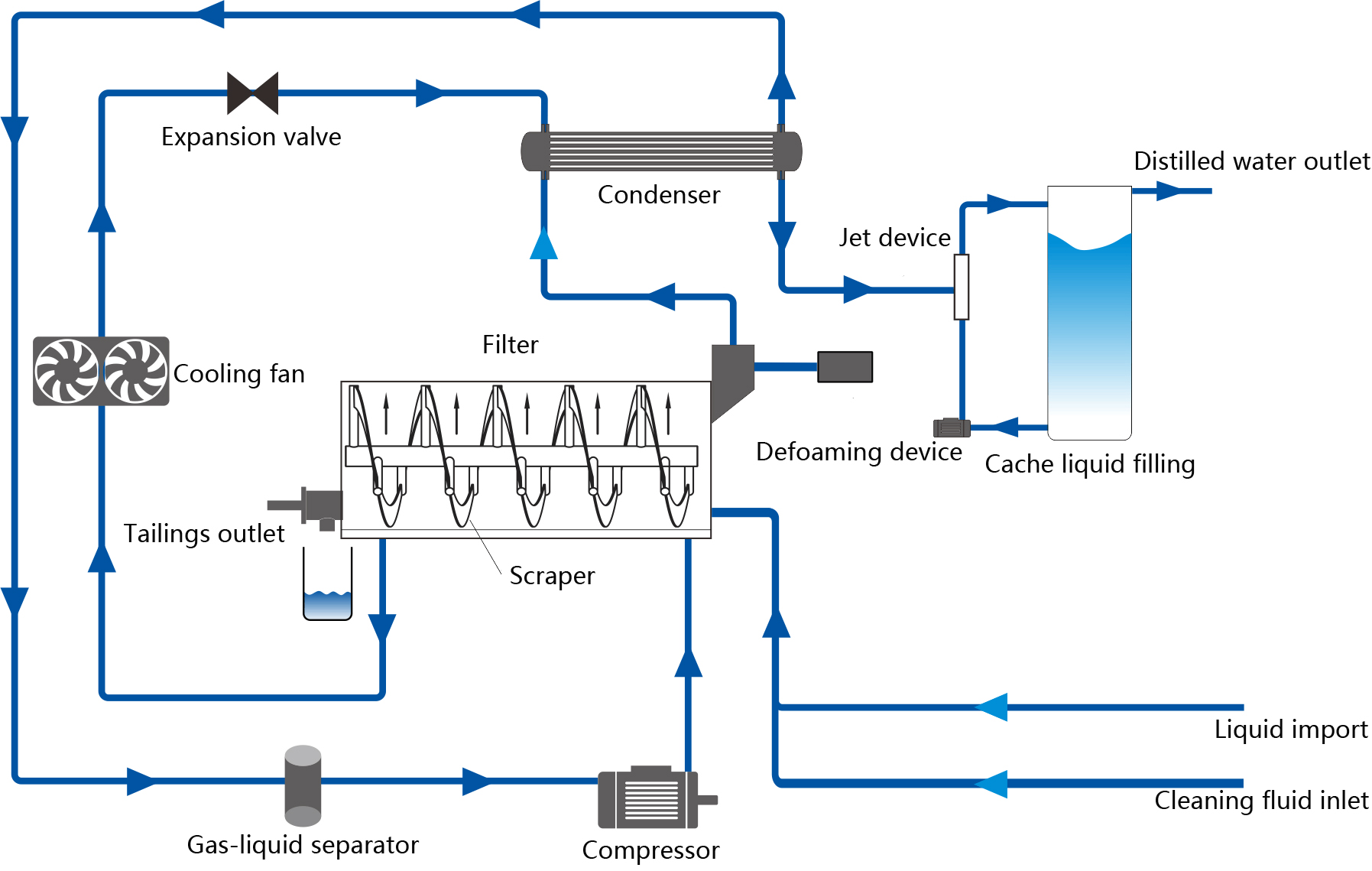

Working principle

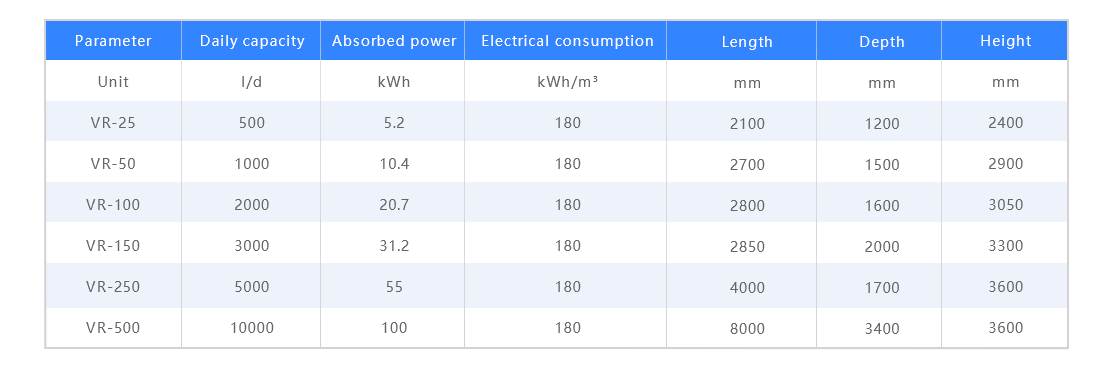

Product parameters

Client Cases

•

  Suzhou low temperature evaporator oily wastewater case

•

  上海低溫蒸發(fā)器模具冷卻液案例

•

  廣東低溫蒸餾設(shè)備乳化液廢液案例

Optional devices

• Inorganic nano ceramic membrane
• PH regulator
• Oil separate equipment

1.

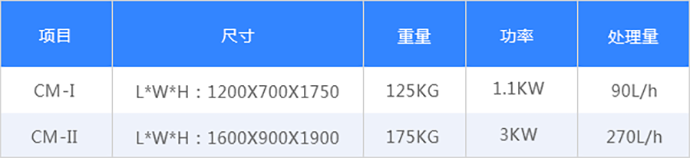

   Technical parameters



2.
   Technical parameters

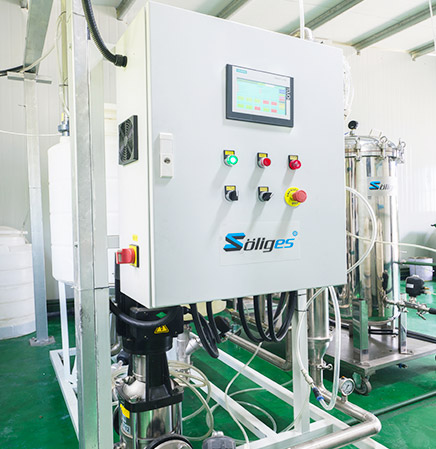

   The structure of the whole machine adopts integrated design, which is easy to install and operate. Users only need to connect the mixer and dosing pump to the appropriate port, the instrument can automatically control the pH value of the water, saving the cost of manual operation.



3.

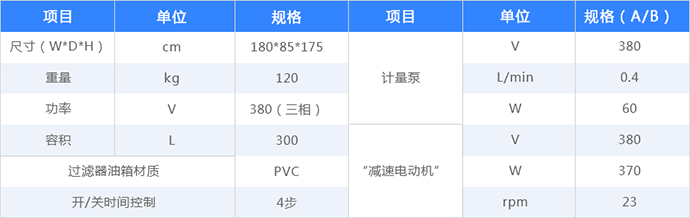

   Technical parameters

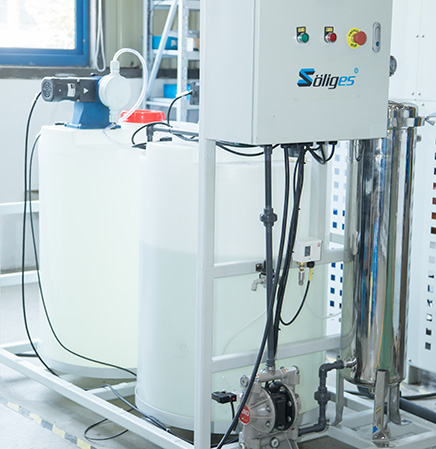

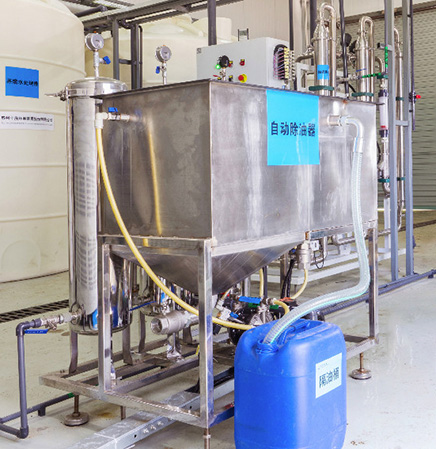

   After primary filtration, the oil is precipitated and skimmed, and then the water is removed by secondary filtration. The sediment is discharged regularly, and the floating oil is discharged into the collection tank for disposal.

   The removal of oil slick is conducive to the long-term stable operation of the sensor and heat exchanger of the supporting evaporator equipment.

If you are interested in the product, you can contact us directly or leave a message below.
