l Customer pain points



Paint film adhesion is severe









l Device name: Ethylene cracker







Unit number: ethylene cracking unit centrifugal compressor



Fix the problem: Remove the paint film







l Oil details



Tank capacity: 20m³



Oil brand: 46# Turbo oil



Oil service time: 1 year











l Use our solution

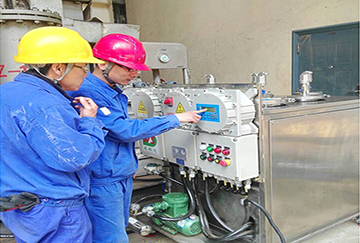

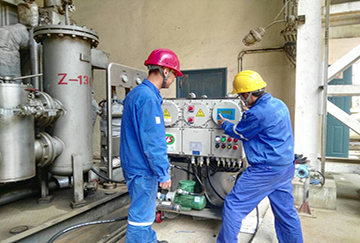

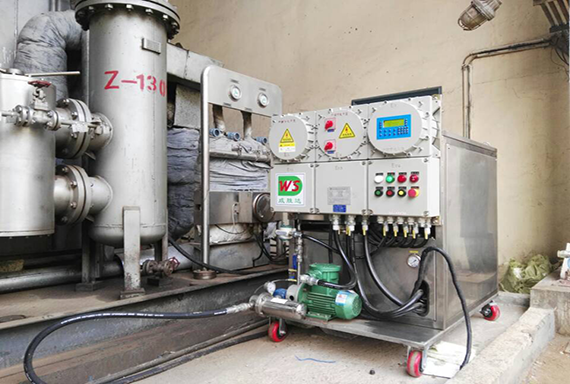

Oil cleaning model No. : WVD-II paint film cleaning machine



Operation time: May 2019 till now











l Before purification



Paint film tendency index MPC: 6



Unit operation: 11C3801 thrust bearing temperature rises to 105℃











l After purification



Paint film tendency index: 1.3



Operation of the unit: In May 2019, the paint film cleaner was put into operation. By June 28, the temperature of the bearing pad decreased from 105℃ without equipment to 95℃, the temperature of the shaft was stable without fluctuation, and the MPC value decreased from 6 to 1.3; The unit is stable and effective after operation and has been put into use in other units.
