Product feature

1.The whole series pass CE approval;

2.Remove sub-micron level contamination, achieve filtration accuracy lower than 0.02μm;

3.Cleaning the system, through the flow of particles with electricity in the oil,clean and remove the sludge,varnish,oxidations and impurities adherent to the reservoir, pipeline, and component.

4.Long-term on-line purification, moisture content reaches 20-90ppm. (The original water content＜500ppm )

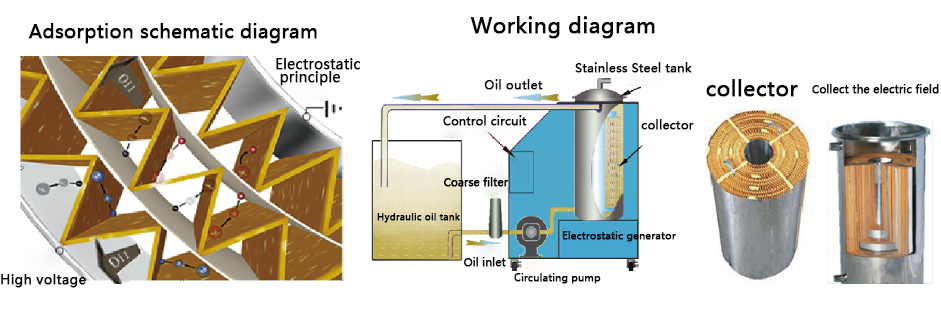

Working principle

WJD electrostatic oil purifier uses the circular high-voltage electrostatic field, making the particulate pollutants respectively show the positive and negative electricity. Under the action of the electric field, the particles with positive and negative charge are separately drawn to the negative and positive electrode. The neutral particles are also moved by the impact of the crowded particles with electricity. All particles are finally absorbed by the collector, thoroughly eliminating the pollutants in the oils.

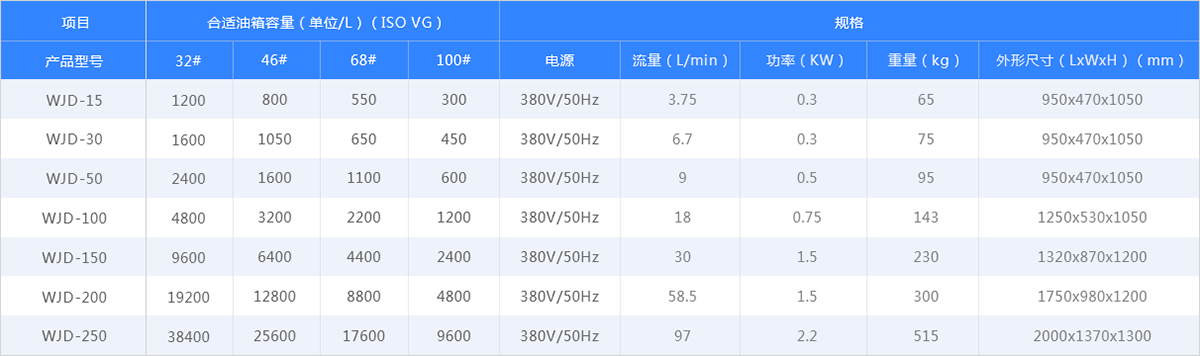

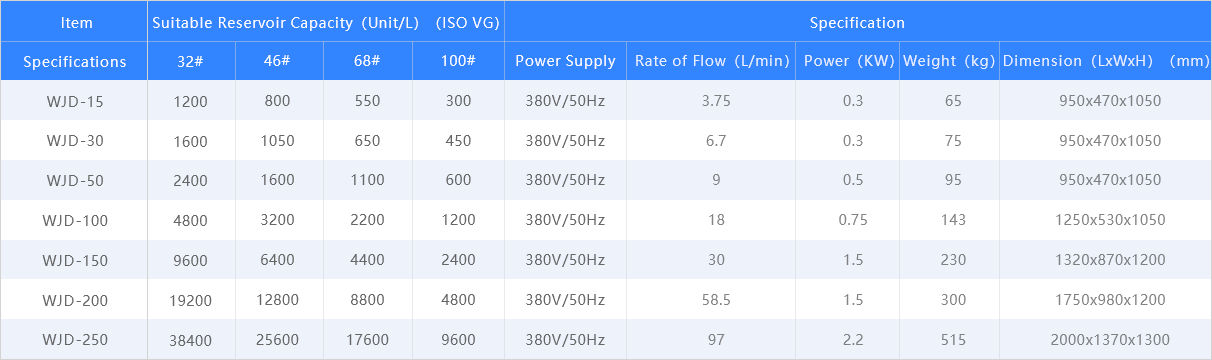

Product parameters

Client Cases

•

  層壓機液壓系統靜電凈油機

•

  水電站筒閥調速靜電凈油機

•

  油壓機液壓系統靜電凈油機

Optional devices

• WICM- Inline Contamination Monitor
• Various filter elements

1.
   Technical parameters

   ?8 channel contamination measurement & display

   ?Measures and displays the following international standard formats; ISO 4406:1999, NAS 1638,AS 4059E and ISO 11218

   ?Moisture and temperature sensing fluid dependant

   ?Data logging and 4000 test result memory

   ?Manual, automatic and remote control flexibility

   ?Multicolour LED and remote alarm signals available (R Versions)

   ?Robust die cast aluminum construction

   ?LPA View software (included)

   ?Pressure max. 400 bar

   ?Environmental protection IP65/67 versatile

2.
   Technical parameters

   Widely used in hydraulic systems and lubrication systems for engineering machinery, mining machinery, metallurgical machinery, etc.

   Large filtration area, low pressure loss, high dirt-holding capacity and long service life. The compatible fluids are including mineral-based, water-glycol, phosphate-based, and various special hydraulic fluids. Filtering fineness: 1μm-500μm(β=100)
