l Customer pain points

The varnish tendency index is abnormal, the unit appears intermittent vibration phenomenon.



Device name: 900,000 tons/year coal to methanol production line supporting air separation unit

Fix the problem: Remove the paint film



l Oil details

Tank capacity: 40m³

Oil type: 46# turbine oil

Oil service time: 4 years



l Use our solution

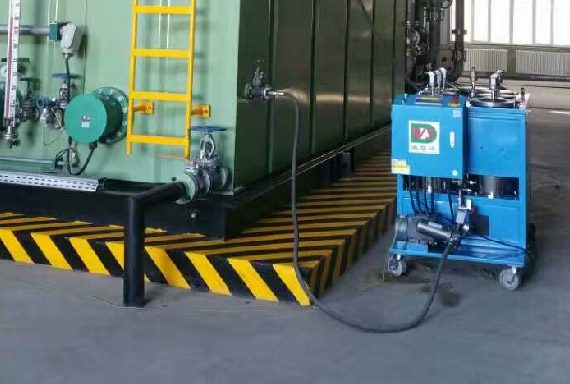

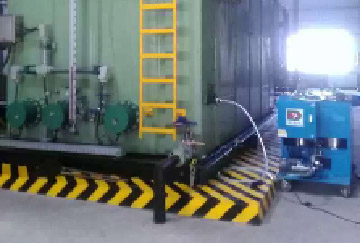

Oil cleaning model No. : WVD-II paint film cleaning machine

Operation time: May 2016 till now



l Before purification

Cleanliness NAS1638:8 Level

Varnish tendency index: 18.2

Unit operation: intermittent vibration occurs in the unit.



l After purification

Cleanliness Level NAS1638:6

Varnish tendency index MPC: 1.2

Unit operation: 1200 hours of operation, MPC value decreased from 18.2 to 1.2, cleanliness decreased from 8 to 6, unit vibration phenomenon eliminated, stable operation.
