In 2018, the ammonia compressor jumped out of the machine due to the high bearing temperature. During the maintenance and removal of the tile in August, a large amount of varnish accumulation was found in the air separation compressor unit, and the MPC value was abnormal during the oil sampling and detection.







l Device name: air separation compressor, ammonia compressor, syngas compressor



Solve the problem: varnish removal, reduce the MPC value, prevent the varnish.









Tank capacity: 40m³



Oil type: 46# turbine oil



Oil service time: 5 years









Oil cleaning model No. : WVD-II varnish removal



Operation time: November 2018 till now









Cleanliness NAS1638:8 Level



varnish tendency index: 22.2

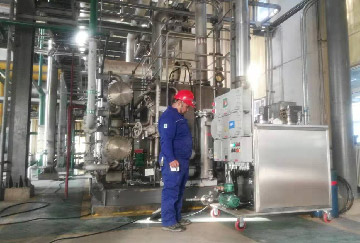

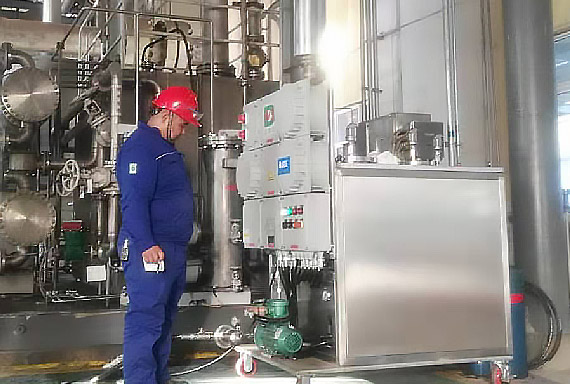

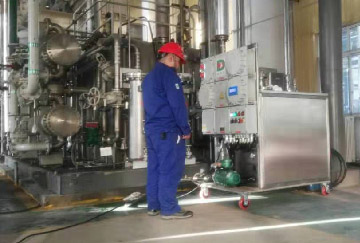

Operation of the unit: During the maintenance in August 2018, it was found that there was a large amount of paint film on the bearing pad. The MPC value of the oil sample sent to the third party was 22.2.









Cleanliness Level NAS1638:7



Paint film tendency index MPC: 10



Unit operation: MPC value decreased to 10 after 2 months of operation
